2026-06-04
Day 4: From zero Isaac Sim to a cloud-streamed robotics + real-world-scan composition in one day
nvidiaisaac-simisaac-labbrevroboticsopenusdphysical-ailearning-log
Fourth entry in the OpenUSD and Physical AI prep journal. Day 4 is the pivot from authoring USD by hand on my MacBook to running NVIDIA’s robotics simulation stack on a cloud L40S, with my real-world iPhone scan composed alongside an NVIDIA-provided robot in a single USD stage.
The pivot
Days 1-3 were about getting the OpenUSD substrate right. Today was about loading it into NVIDIA’s robotics simulator, training a robot in it, and proving the loop end to end. There’s a framing from a recent post that keeps landing for me: digital twins aren’t a deliverable, they’re the precondition for iterating on real robots. You don’t cut metal until the robot has learned to walk in the metaverse. Fastest way to engage credibly with that is to actually do the loop at small scale. Three steps, one evening, under $30 of cloud spend. All three landed.
The afternoon: cloud cold-start to trained robot

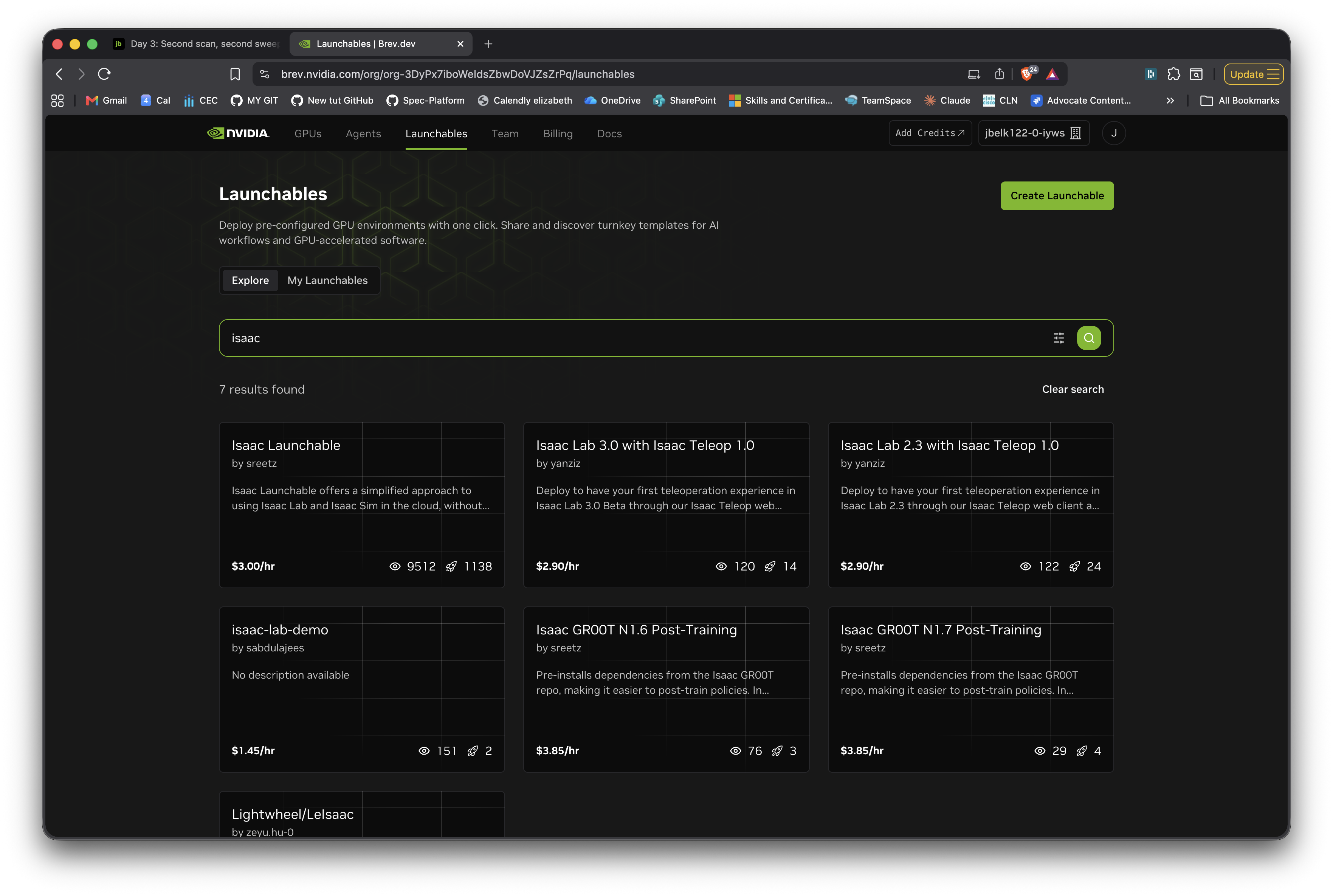

NVIDIA bought Brev (a GPU rental platform) since I last looked, and shipped the Isaac Launchable: one-click deployment of a containerized Isaac Sim 5.1 plus Isaac Lab 2.3 environment, browser-streamed via WebRTC from an AWS L40S. No local GPU required.
First deploy is about 25 minutes (provisioning is fast; the bulk is shader-cache warm-up). Subsequent starts are much faster because the cache persists.

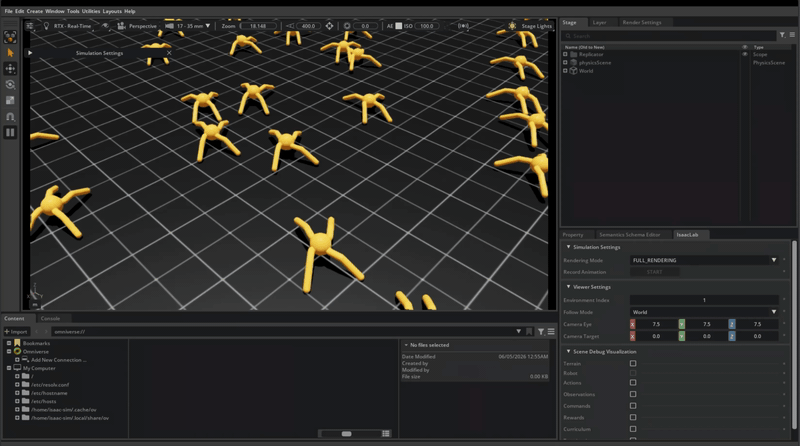

Once the streamed viewer was alive, I ran the canonical Ant locomotion task. 8000 PPO iterations across 4096 parallel Ant simulations in roughly 2 minutes of wall-clock time on the L40S. Trained checkpoint saved automatically. Cost so far: under $1 of compute.
A network engineer with zero prior robotics-RL experience training a working quadruped locomotion policy in 2 minutes on a cloud GPU, for less compute spend than a coffee. That’s the cost-per-experiment story behind why robotics R&D has been moving the way it has the last couple of years. The hardware substrate is real and accessible.
The evening: composing the real-world scan with the robot
Training the Ant on flat ground proves you can do robotics on the cloud. The more interesting bit is bringing real-world geometry in alongside it. That’s where the OpenUSD work from days 1-3 connects.

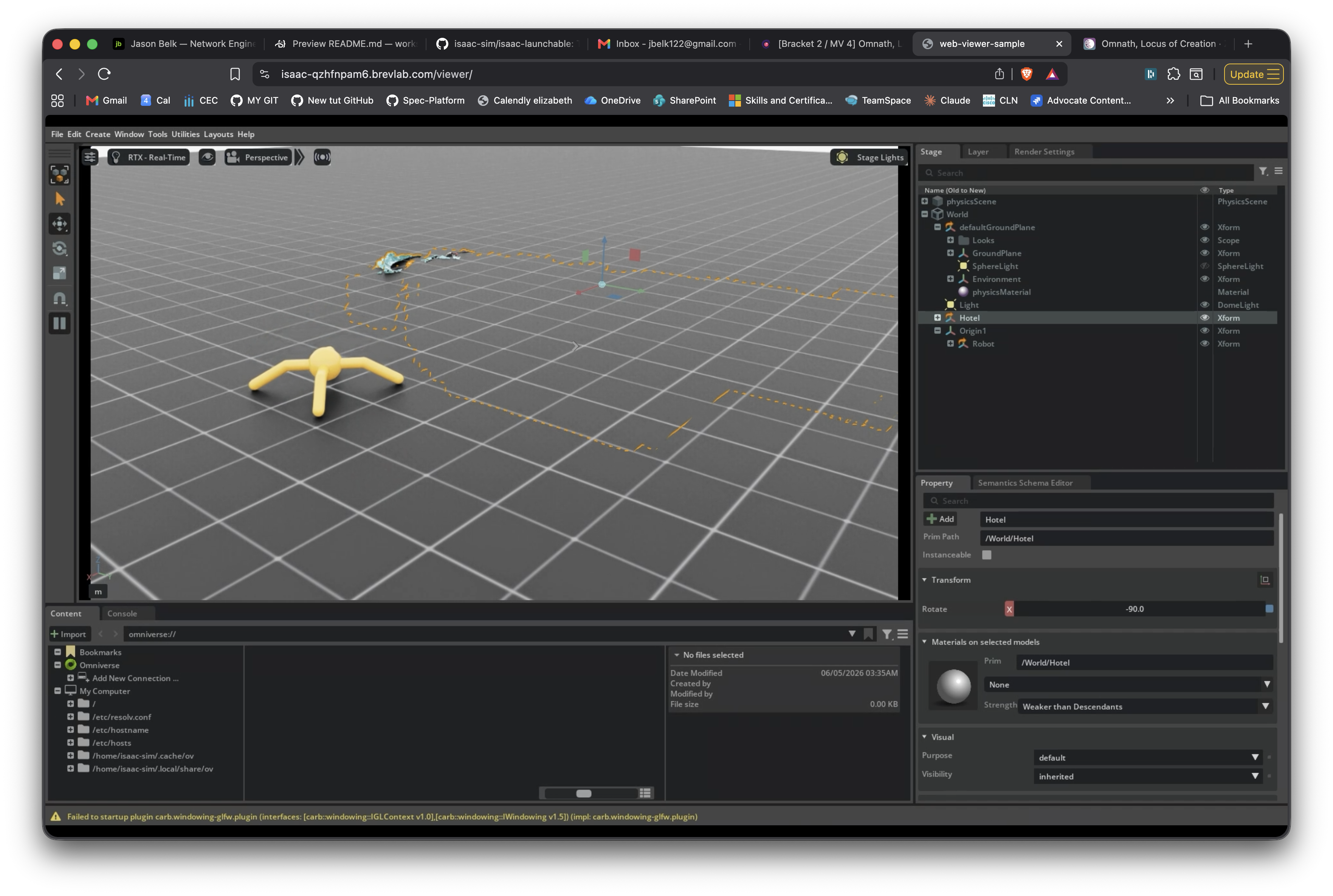

I uploaded my hotel scan from Day 3 (hotel.usdz, an iPhone LiDAR capture exported by Scaniverse) into the running Isaac Sim instance, wrote a Python script that referenced both the hotel and the NVIDIA-provided Ant robot into a single USD stage, and rendered the composed scene via the same browser-streamed viewer.
Composition is the actual demonstration. Hotel and Ant are both authored as USD references into one stage. The Hotel gets a 90° X rotation to flip Scaniverse’s Y-up convention into Isaac Sim’s Z-up, plus a translate to lift its floor to match the ground plane. The Ant lives under an Xform parent at /World/Origin1/Robot, which is the canonical Isaac Lab prim-path pattern. A DomeLight provides ambient illumination so the Ant’s PBR materials read correctly.
The friction notes that matter
Short list by design. These five are the ones I think actually matter for someone working on the NVIDIA Physical AI stack.
The ISAAC_NUCLEUS_DIR = None footgun for custom standalone scripts. When you write a custom script that uses SimulationApp directly (instead of AppLauncher from isaaclab.app), the Isaac asset path resolves to None because the underlying carb setting /persistent/isaac/asset_root/cloud only gets populated by AppLauncher’s kit configuration. The result is a FileNotFoundError with a path literally starting with "None/Isaac/...". Every Stack Overflow answer and tutorial that uses SimulationApp directly will hit this. Doc-fix: Isaac Lab’s standalone-script docs should lead with AppLauncher, OR ant.py and peers should resolve the asset path lazily and raise a clear error if ISAAC_NUCLEUS_DIR is None.
The /World/Origin1/Robot Xform-parent requirement is undocumented but mandatory. I spent over an hour debugging an Ant articulation that had the full prim hierarchy in the Stage tree, the right selection wireframe at the right world position, joints recognized by the physics engine, but no visible mesh. The fix: ANT_CFG.replace(prim_path="/World/Ant") doesn’t work for visible rendering; ANT_CFG.replace(prim_path="/World/Origin1/Robot") (under an Xform parent) does. Every working Isaac Lab demo uses the latter. The launchable doesn’t surface this anywhere. Doc-fix: a “common pitfall” callout in the launchable README: prim_path must be under an Xform parent, never directly under /World. Highest-leverage doc-fix in the entire stack.

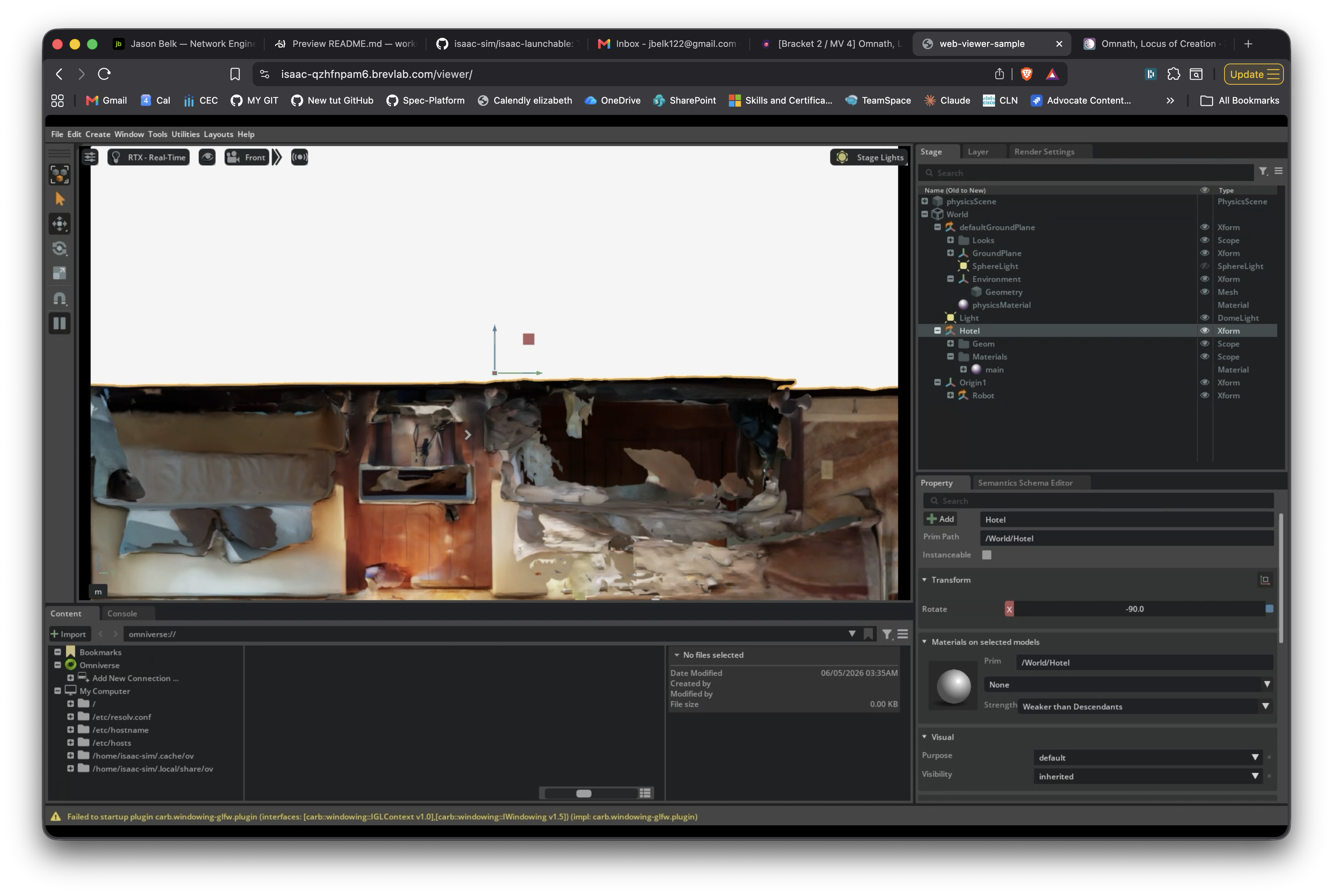

Scaniverse exports aren’t production-ready for downstream 3D pipelines. Scaniverse meshes are single-sided with normals oriented for the Scaniverse viewer specifically. In Isaac Sim’s RTX renderer, the scan is visible from the Scaniverse-intended angle and invisible (or partially missing) from other angles. Setting doubleSided=true helps but isn’t a complete fix. Doc-fix: Scaniverse should offer a “production export” mode that re-orients normals outward and bakes double-sided geometry for downstream tools like Blender, Isaac Sim, and Unreal.
The Isaac Launchable has no examples beyond train.py and play.py. The README points to those two canned commands and nothing else. There’s no “write a custom script that loads a robot and views it” example, which is the natural next step after the hello-world. Users have to dig into upstream Isaac Lab and adapt scripts/tutorials/01_assets/run_articulation.py. Doc-fix: add an examples/ directory to the launchable with two or three canonical custom-script patterns (load a robot, load a custom USD scene, compose both).
What this means
Getting this loop working in one evening on a cloud GPU for under $30 told me one thing: the friction left in the path is documentation and onboarding, not capability. Hardware works, simulator works, training works, composition works. The places I got stuck were almost all “the canonical pattern isn’t surfaced in the launchable’s docs, only in the upstream Isaac Lab examples directory.” That’s a fixable problem, and the fix is exactly the kind of work a network engineer with 14 years of writing DevRel documentation can usefully contribute to.
What’s next
Concept-level read of the broader NVIDIA robotics stack tomorrow (Isaac GR00T, Isaac Lab, Jetson Thor, Cosmos). Vocabulary fluency, not pretend depth.
This weekend, the two highest-leverage friction notes (ISAAC_NUCLEUS_DIR = None, the /World/Origin1/Robot Xform-parent requirement) get filed as a GitHub issue against isaac-sim/isaac-launchable. The repo’s CONTRIBUTING.md says it doesn’t accept contributions (PRs close without merge), but issues do get engagement. Right channel for the work.
The call I’ve been preparing for happens Monday afternoon. This entry is the proof of concept. The call is the conversation.
Transparency note: the OpenUSD work in days 1-3 was hand-written, because the goal was building a real mental model of USD. Today was different. The Isaac Sim cold-start scripting, the Articulation API debugging, the scene composition all leaned on Claude Code. Timeline plus operational complexity — I had the USD assets ready, needed the cloud pipeline working in one evening, and the debugging surface (Isaac Lab APIs, USD instancing semantics, Hydra rendering, carb settings, the launchable’s containerized layout) was bigger than I’d plausibly poke at by hand in that window. The friction notes are mine, hit in real time. The Python plumbing was AI-assisted.
Reach me on LinkedIn or via Sierra Code Co.
